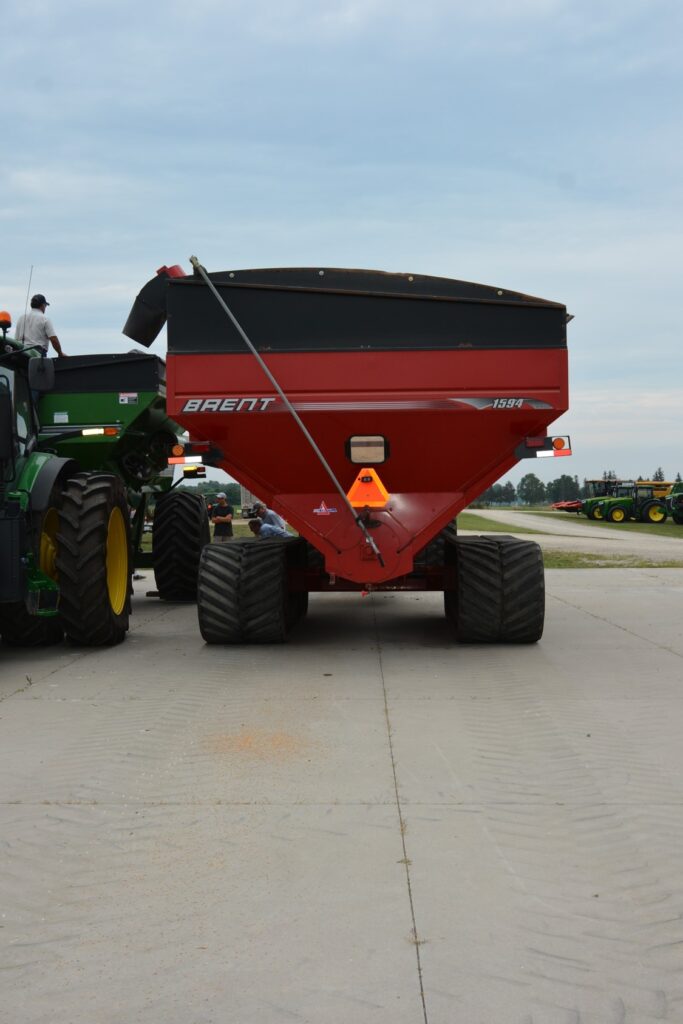

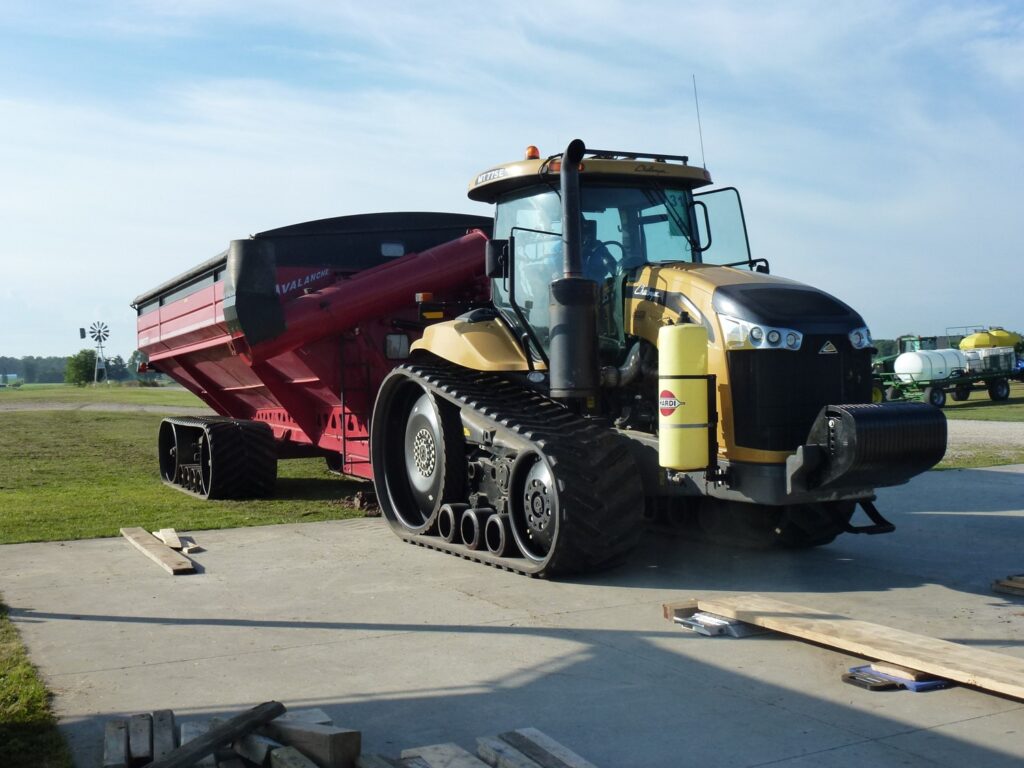

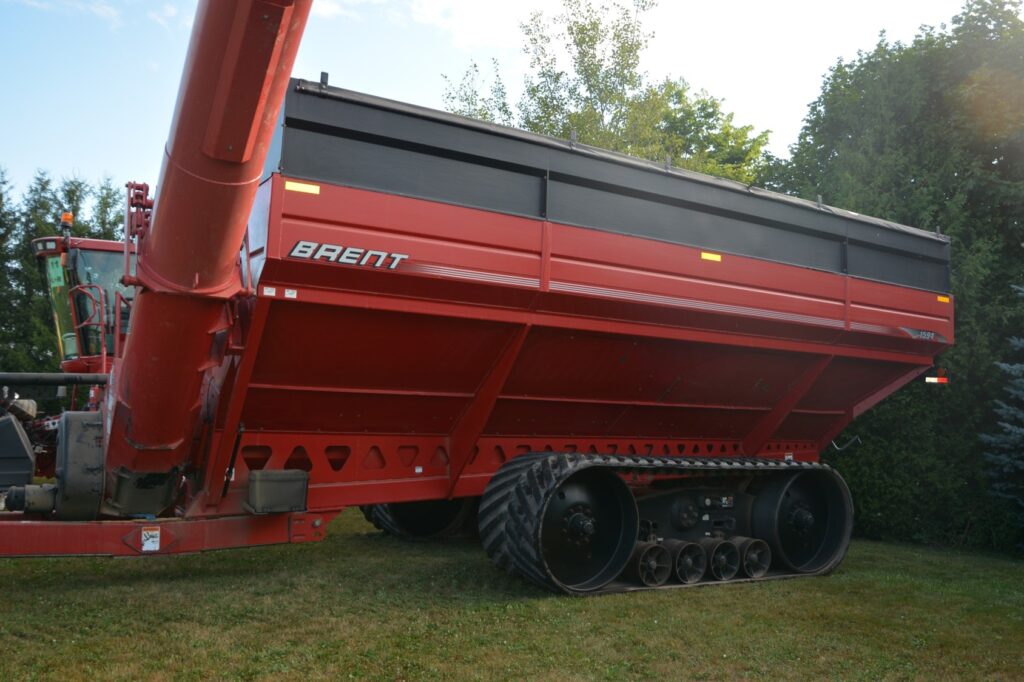

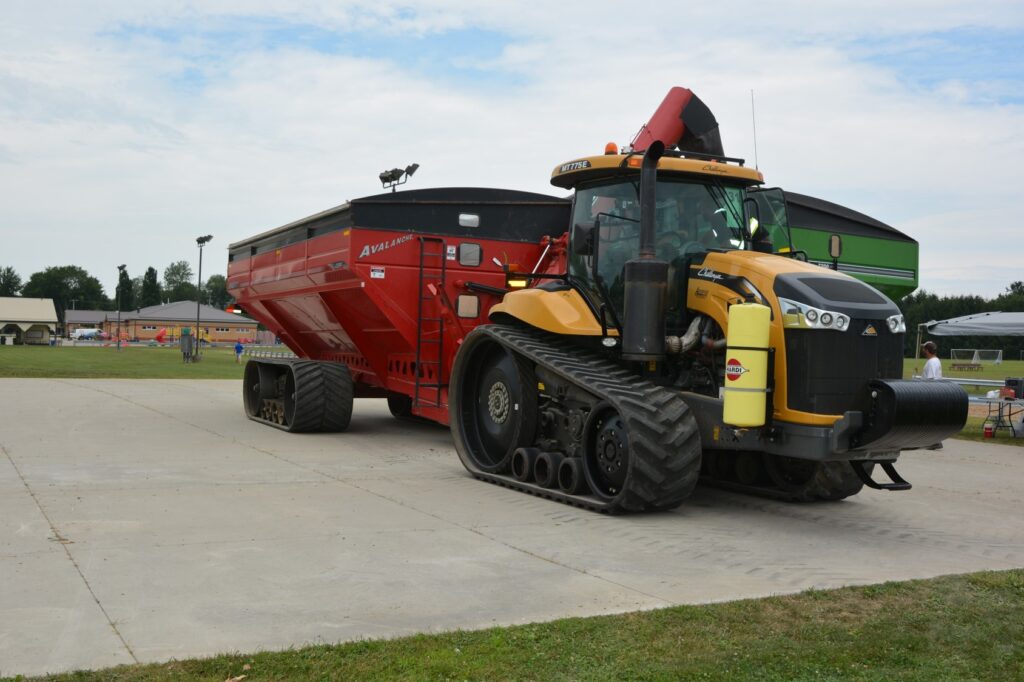

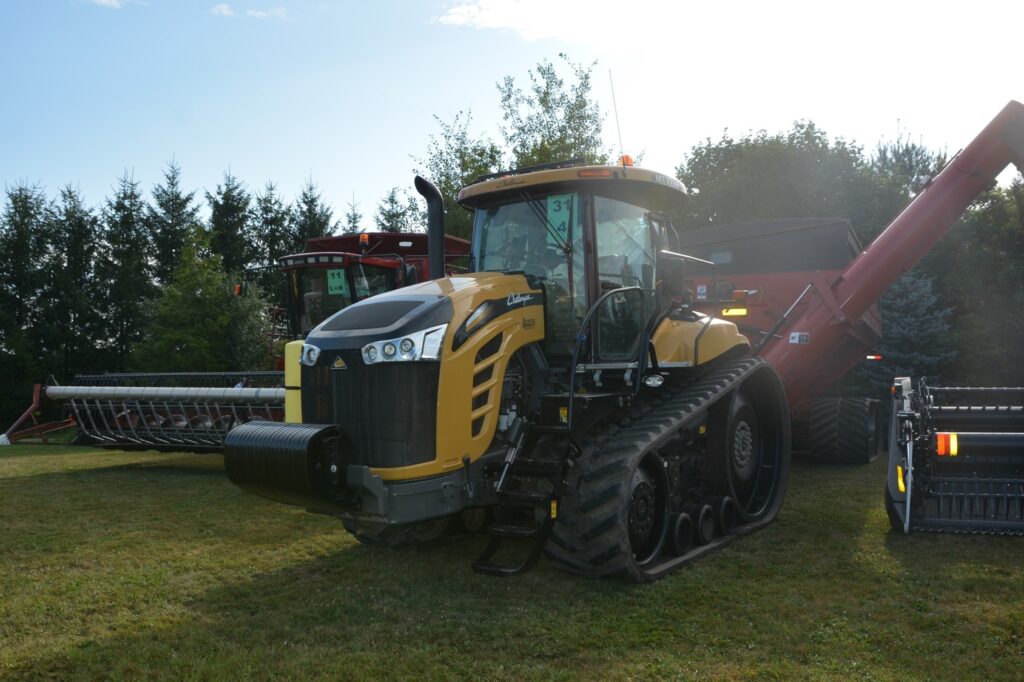

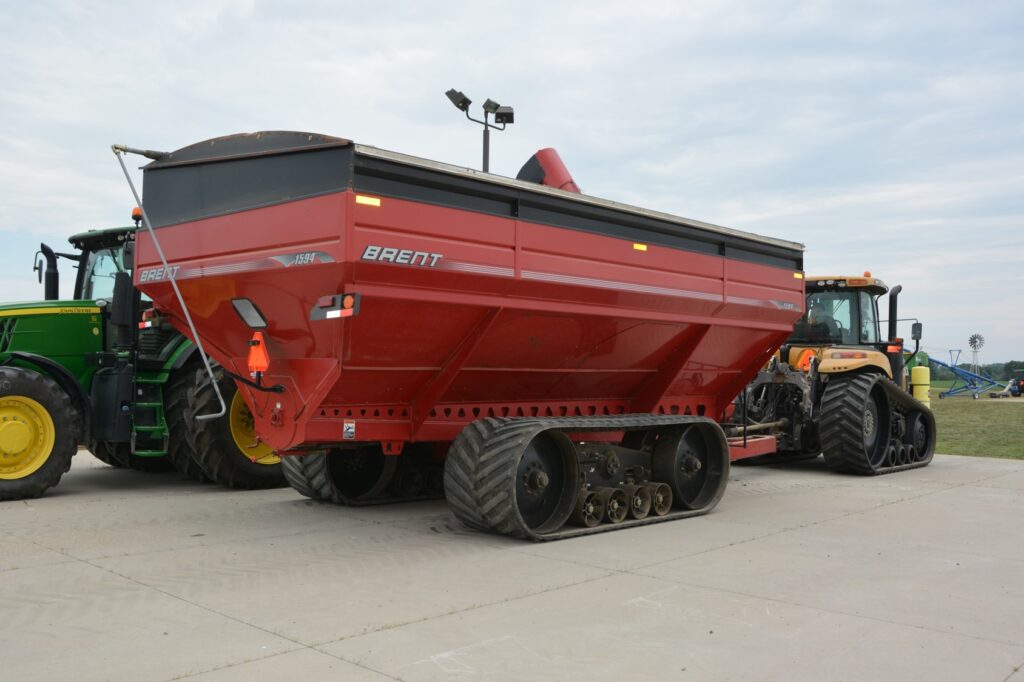

Unit 4 + 31: Challenger M775E Row Crop Tracked Tractor and Tracked Brent Avalanche 1594 Grain Buggy

Plot Comments

  • This unit tested the grain cart tracks the first two plots were aligned over the center of the track face which shows a lower soil pressure.
  • The second two plots show the pressure under the outside third of the track face, directly under the track rollers. These plots did not record the track of the tractor since it was off the sensor.
  • This shows that the pressure distribution across the face of the track is non uniform.
