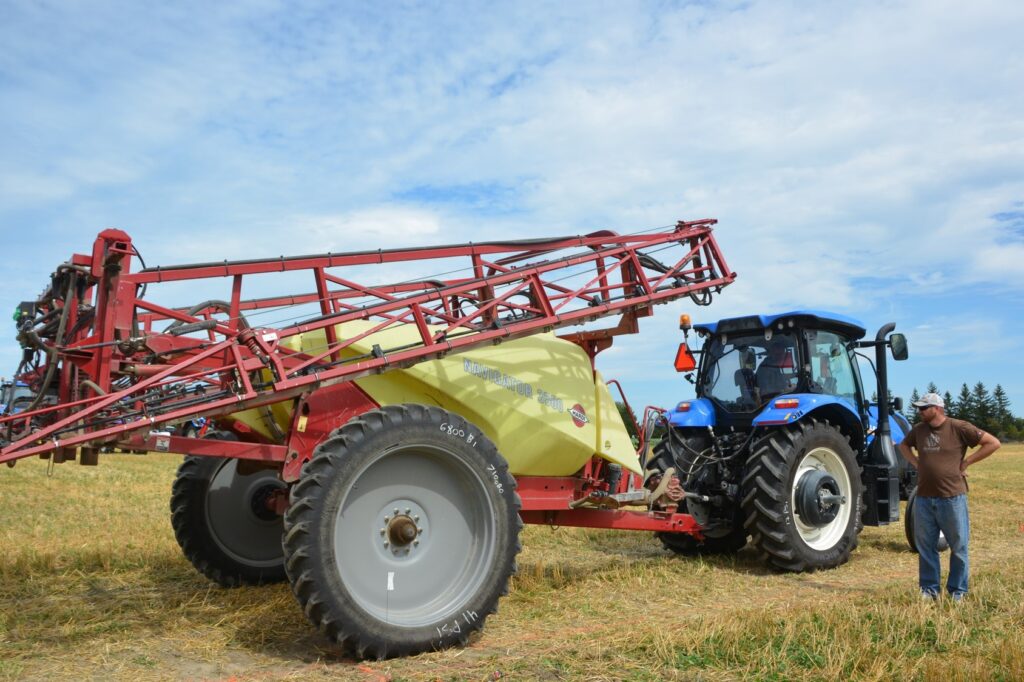

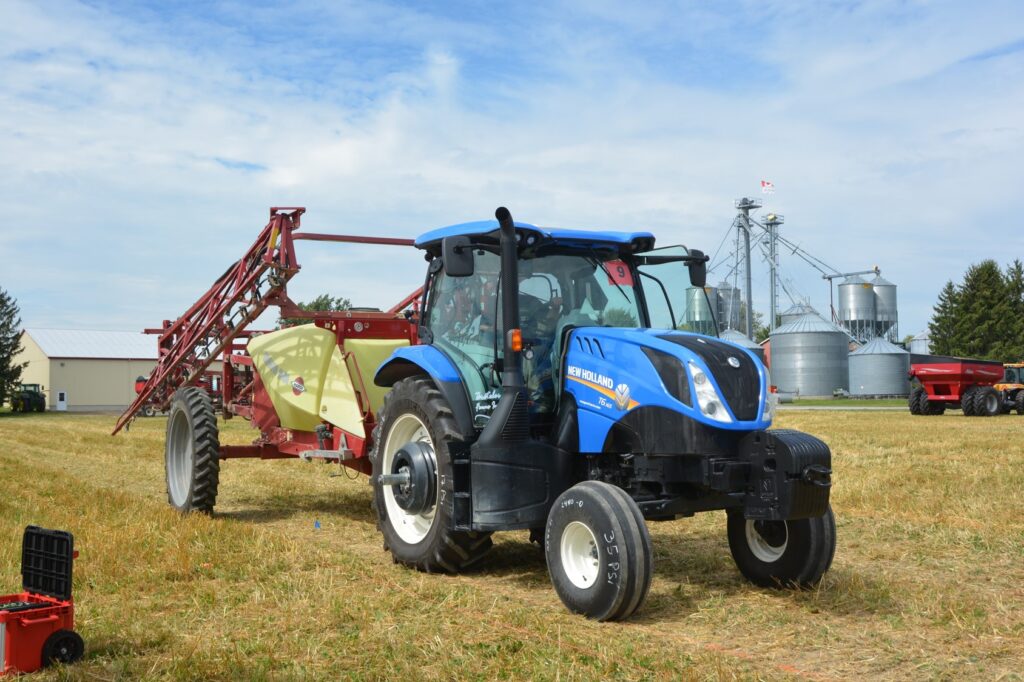

Unit D9: New Holland T6.165 Singled Row Crop Tractor w 480s + Hardi Navigator PT Sprayer w 320s

Plot Comments

  • Very narrow and high pressure tire on the sprayer combined with a heavy load means increase stress at all depths.
  • The D9_justtractor_1 plot shows the tractor driving over the sensor and backing up over the sensor again to avoid the sprayer damaging the measurement equipment.
  • The middle peaks on the plot are the rear tire of the tractor. The rear tire had more weight due to the tongue weight of the sprayer, increasing the stress at 12 inches.
