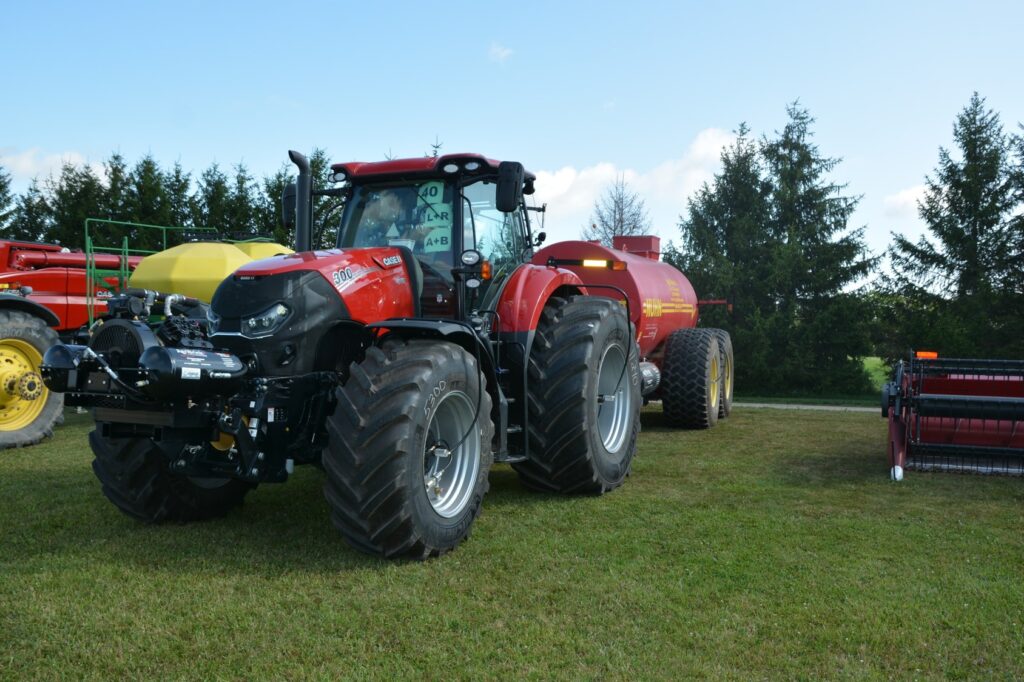

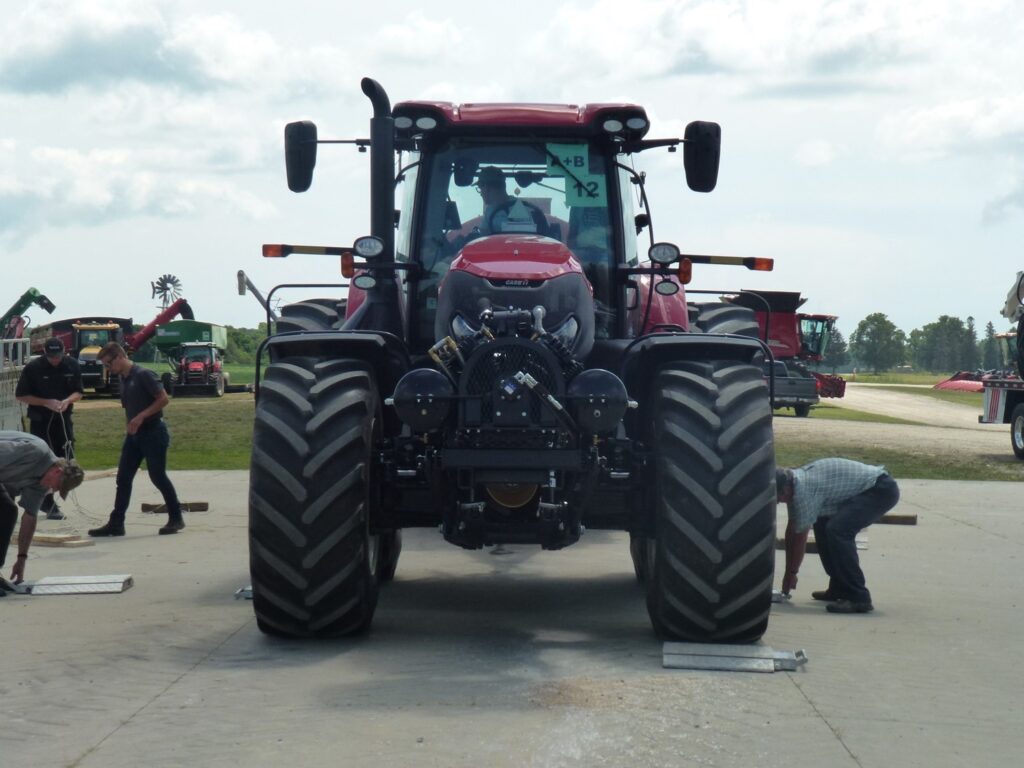

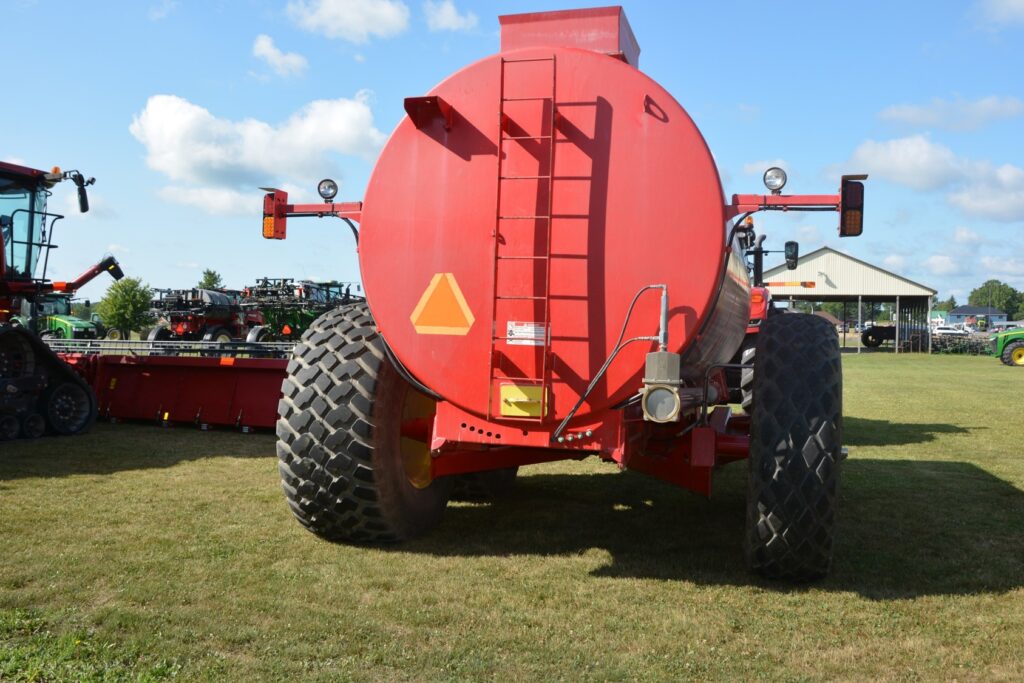

Unit E40: Nuhn Tandem 5000 Manure Tanker w 30.5LR32 Bias vs 480/80R38 Radial + CaseIH Magnum 300 Row Crop Tractor Both With CTIS

Plot Comments

  • This Unit is another good example of the advantages or Central Tire Inflation.
  • On both the left and right sides the plots show a reduction in soil pressure when tire pressure was lowered.
  • This particular tire on the right hand side is a very round tread face and generates a high soil stress in the center of the tread face. This tire created a deep rut over the sensors despite being a radial tire.
